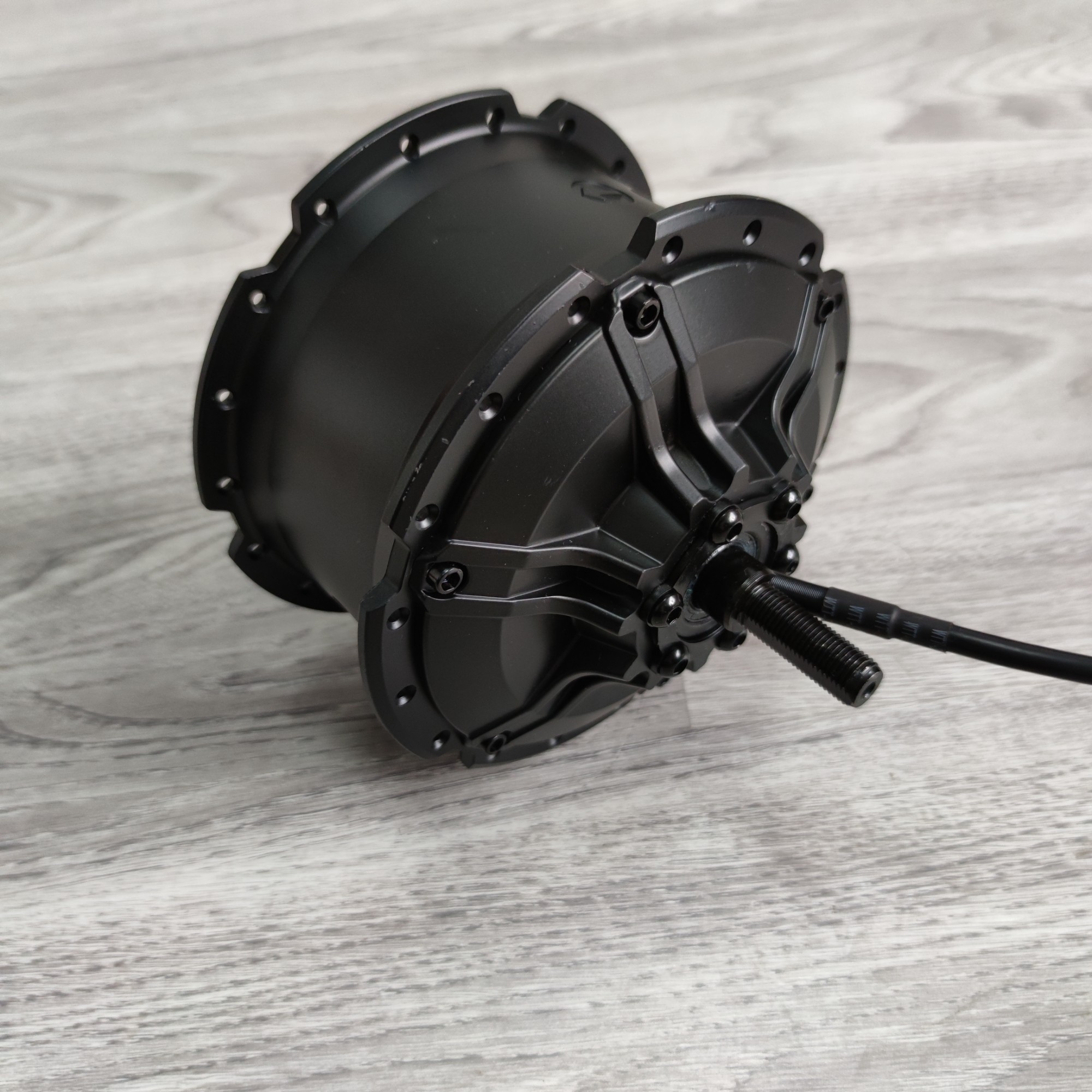

CE approved 24/36/48V 250-1000W BLDC freewheel rear drive electric hub motor
BLDC freewheel rear drive electric hub motor
Model | FM-01-01-NBSBR |
Rated Voltage(V) | 24/36/48 |
Rated Power(W) | 250-1000 |
Wheel Size | 16”/20”/26” |
Spoke Specification | 12G/13G |
Spoke Holes | 36 |
Rated Speed(km/h) | 25 |
Efficiency(%) | ≥80 |
Reduction Ratio | 1:5 |
Weight (Kg) | 3.85 |
Open Size(mm) | 150,170,180,190 |
Drive And Freewheel | Rear drive/6-9S |
Cable Location | Optional |
Hall Sensor | Optional |
Inner Speed sensor | Optional |
Surface | Black/Silver |
Brake Type | V brake/Disc brake |
Salt Fog Test(h) | 24/96 |
Noise (db) | <55db |
Waterproof Grade | IP54/IP65 |
Comments:
1. Customized LOGO available.
2. Brushless geared motor,Brushless gearless motor optional.
2.1Brushless geared motor
Normal electric bike motor 24V/36V/48V,180W-1000W
Fat bike motor 36V/48V/52V/60V,250W-1200W
2.2Brushless gearless motor
Normal electric bike motor
36V/48V/52V/60V/72V,250W-1500W
Fat bike motor 36V/48V/52V/60V/72V 500W-8000W
3.Normal electric bike motor & electric bicycle motor available
Front drive motor(dropout 100mm)
Rear drive single speed motor(dropout 125mm)
Rear drive 6-9 speed motor(dropout 135mm)
Rear drive 6-11 speed cassette motor(dropout 142mm)
4.Fat bike motor
Front drive motor(dropout 100mm)
Rear drive 6-9 speed motor(dropout 170-190mm)
Rear drive 6-11 speed cassette motor(dropout 170-190mm)
PS:Rear drive fat bike motor with dropout 150-155mm can be Customized
5.Spoke hub motor can be assemblied with double layers/wall aluminum rim,16-28*1.75-2.125,fat bike motor,16*4.0,20*4.0,26*4.0.
6.Spoke hub motor normally with 36 holes,24 holes,72holes can be customized.
7.Our motor with Dacro screws/nuts, gaskets,(flat pad,stop pad),black rubber sleeve
8.Our motor with JULET waterproof cable.
9.All motors have matching electric control systems,Throttle with battery indicate,Throttle with digital display,LED & LCD control systems optional.
